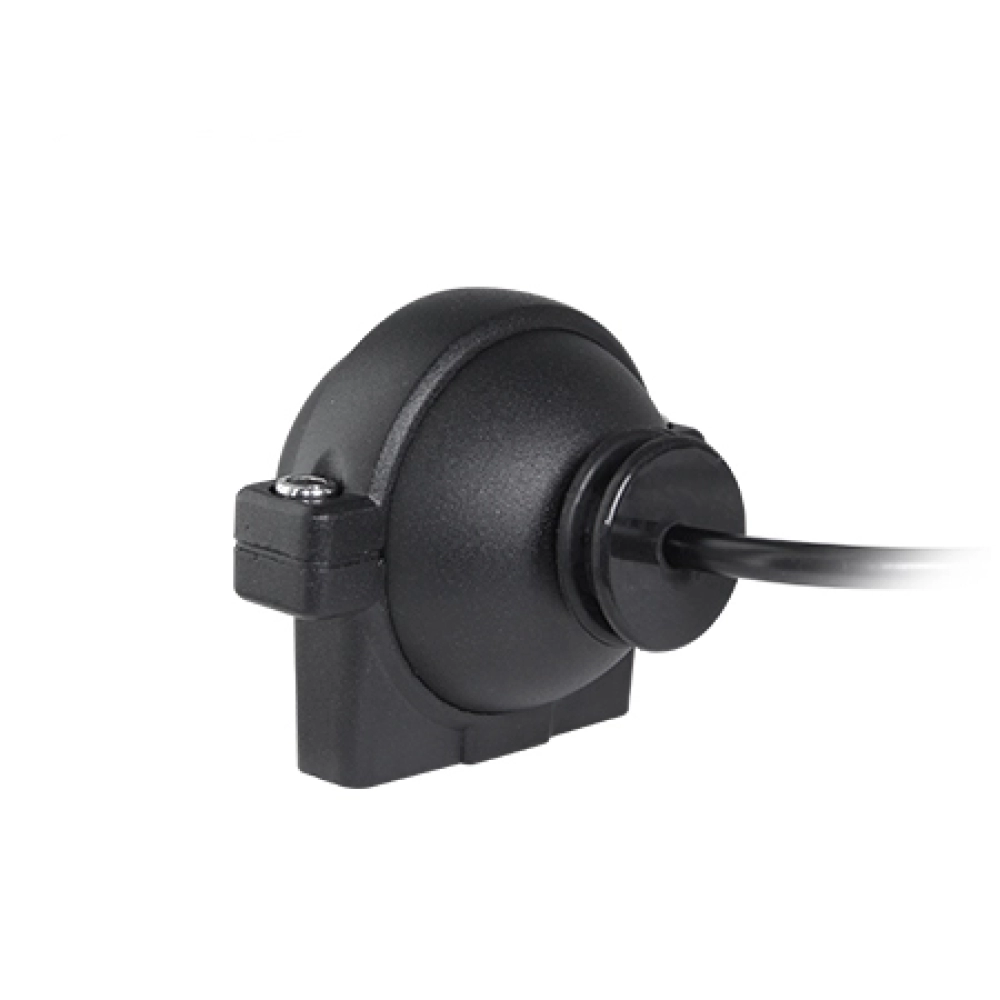

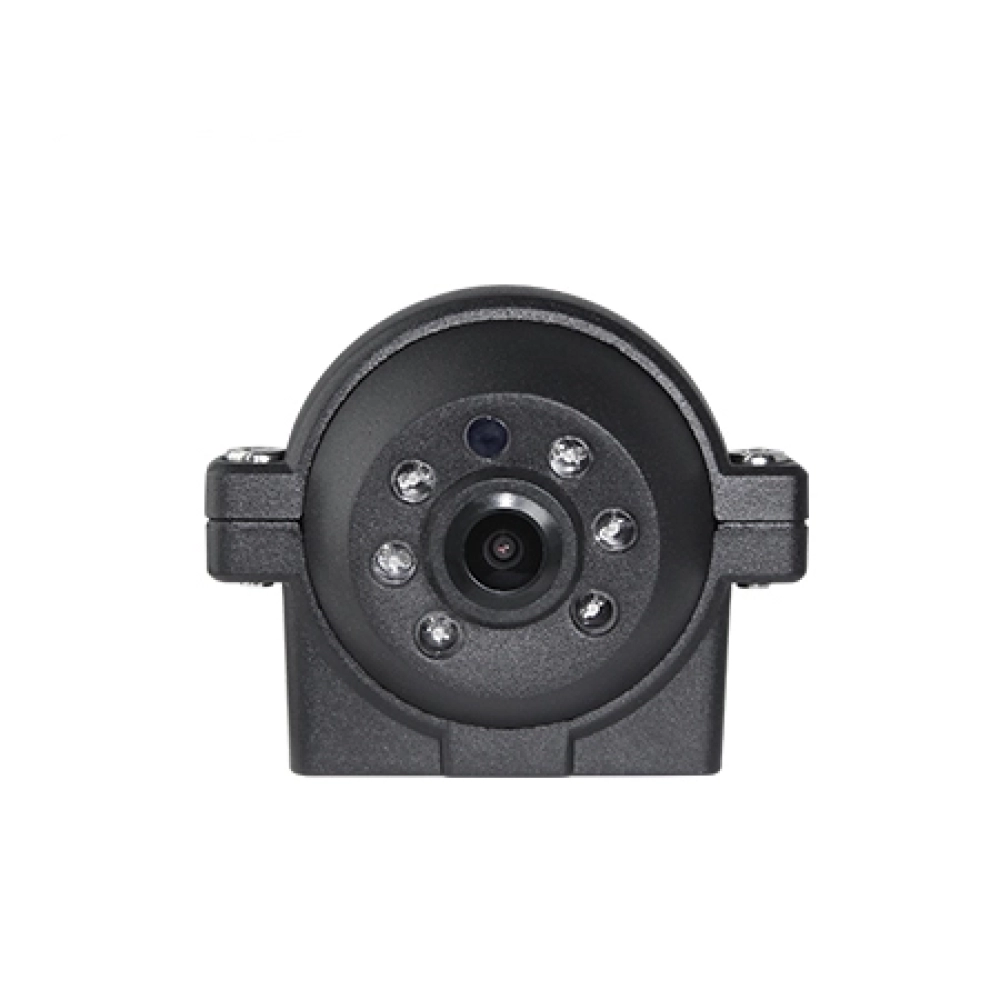

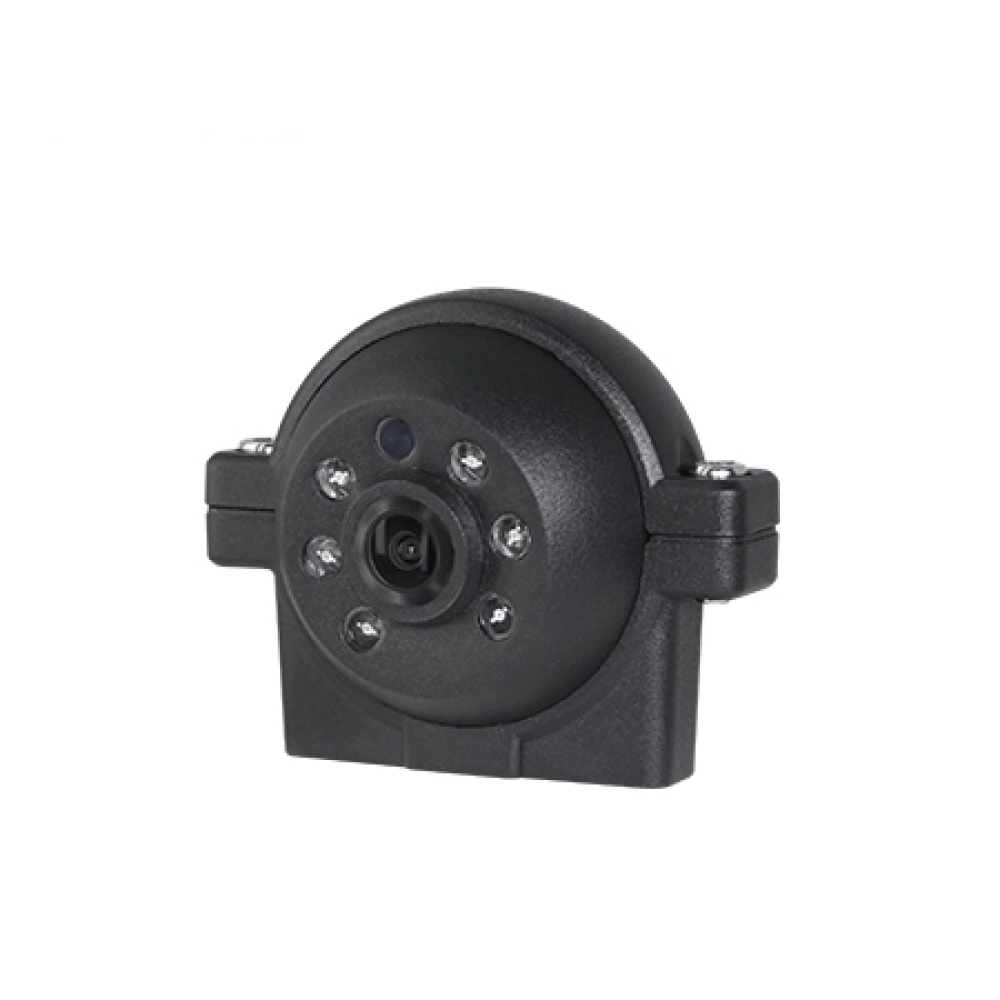

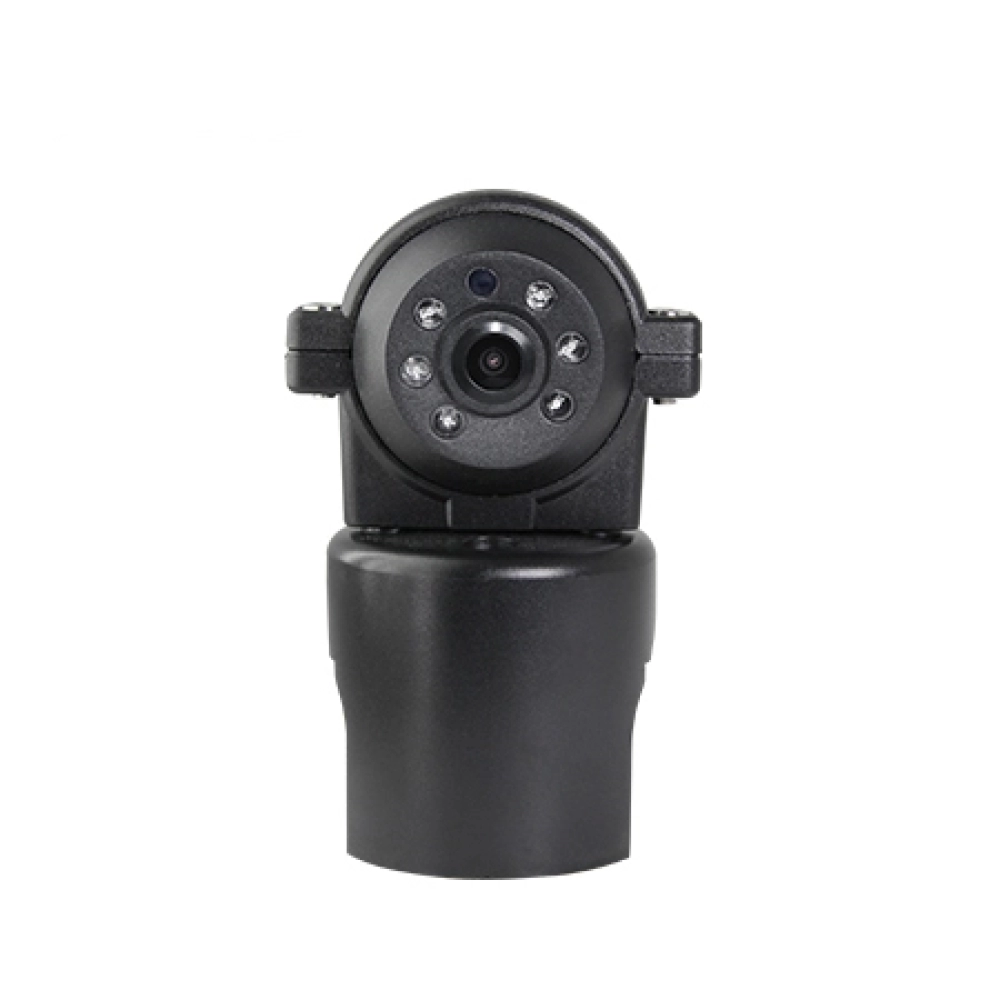

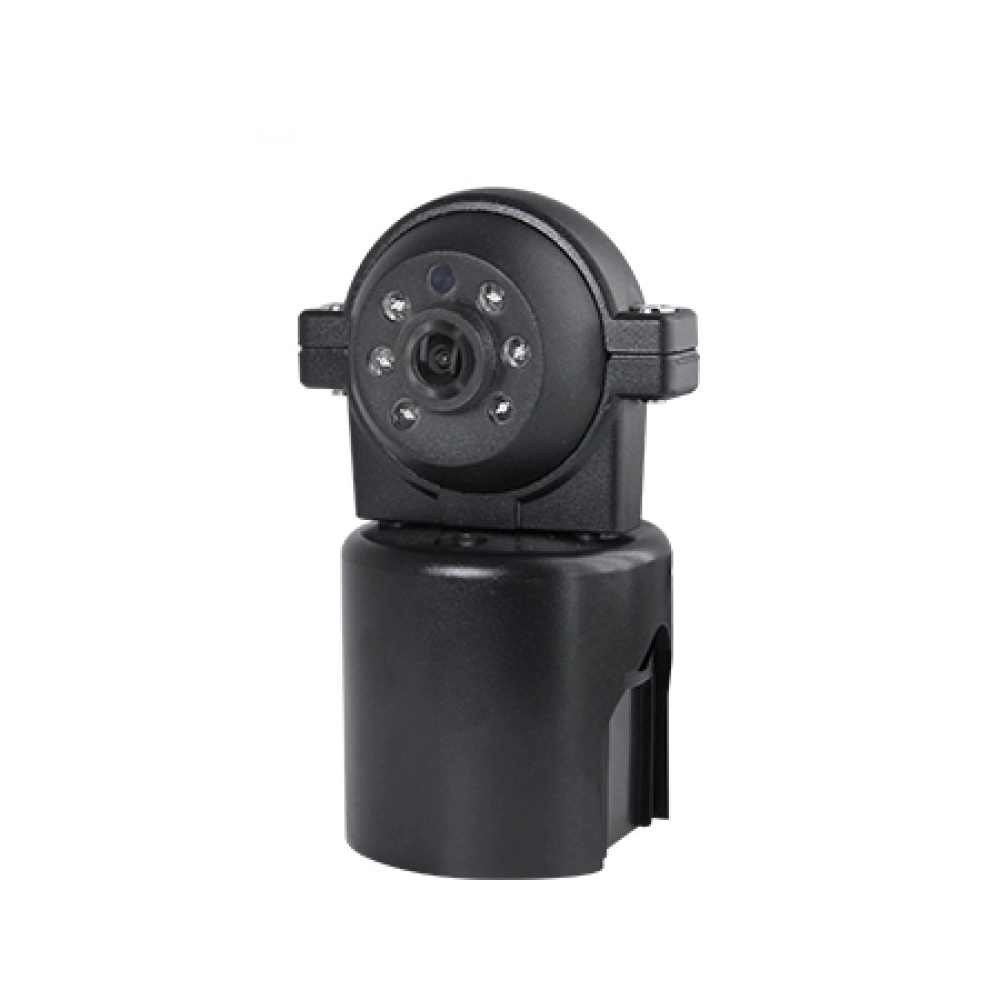

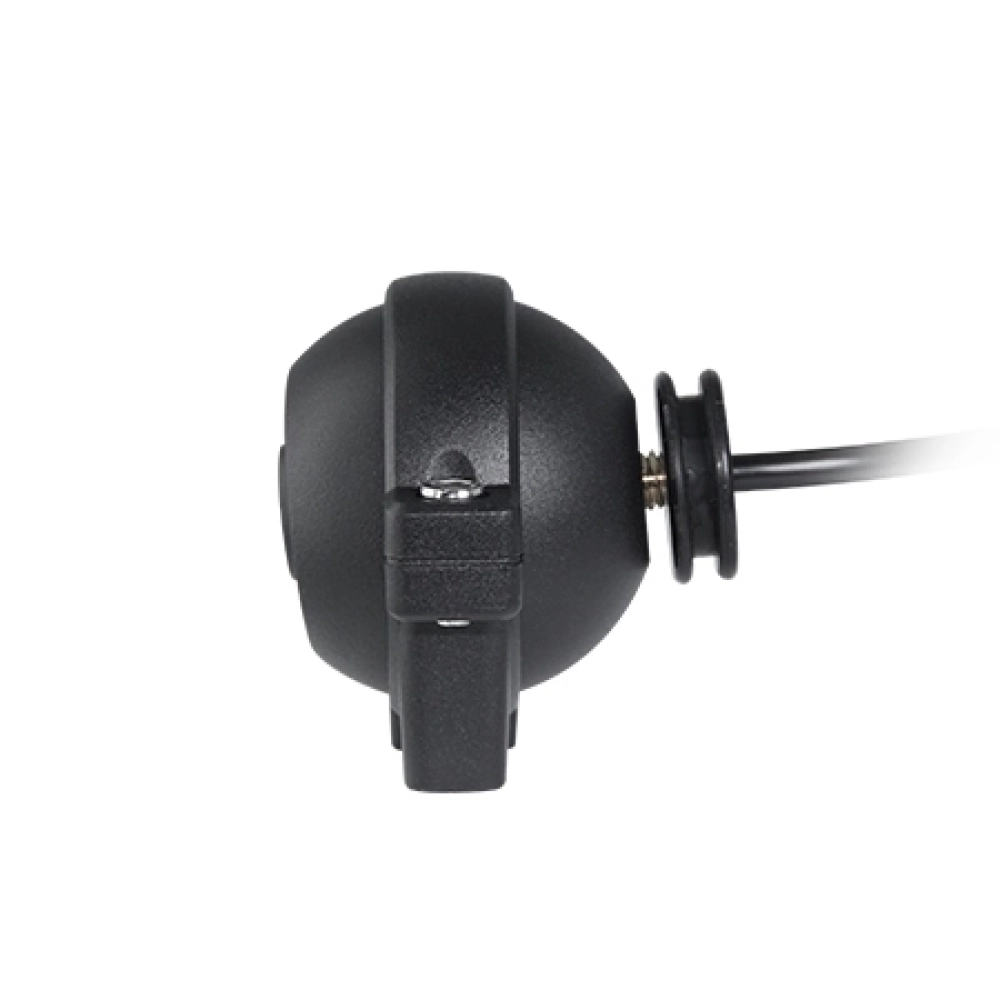

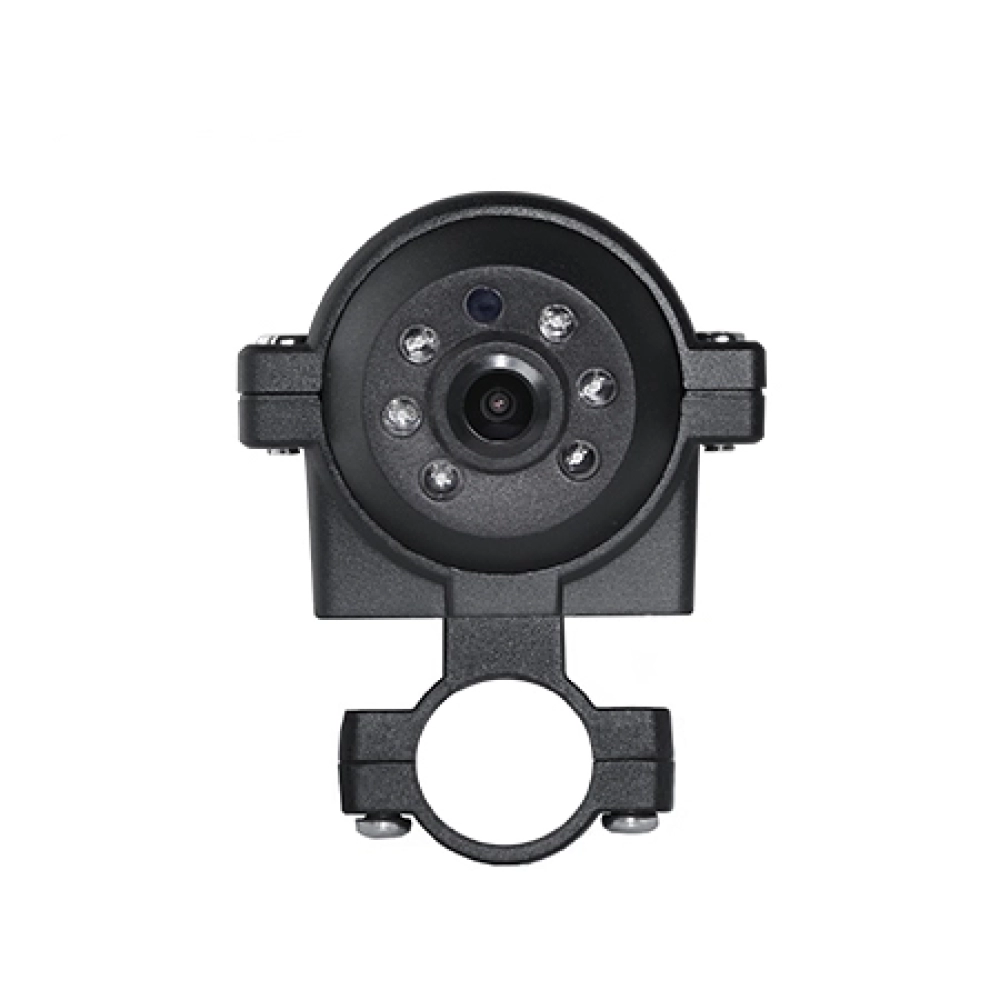

Name: Waterproof rearview and side-view wide-angle camera (SF-5100)
SKU: SF-5100
Rating: 5 (1226 reviews)

PRODUCT DETAIL

[AHD Signal] and [Analog Signal] are optional:

(These two signals are not compatible, and most devices cannot simultaneously support both for display) Please confirm which signal your monitor or recorder uses before making a purchase.

Model	SF-5100
Sensor type	CMOS（Optional AHD720P/960P/1080P）
System format	PAL / NTSC
Effective pixels	1280 (H) x 720 (V) （Optional 1920 (H) x1080 (V) ）
Signal-to-noise ratio	>52db
Horizontal angle	Can be customized according to customer needs
Horizontal resolution	700TVL
Minimum illumination	0.00001LUX/F1.2
Scanning frequency	PAL:50Hz NTSC:60Hz
Shutter speed	PAL:1/50～1/100000s NTSC:1/60～1/100000s
Operating Voltage	DC12V（Can be customized according to requirements）
Video output	AHD/1.0Vp-p(CVBS Output optional)
Waterproof Rating	IP69K Waterproof
Operating temperature	-20~+70°C, RH 95%MAX
Storage temperature	-40~+80°C, RH 95%MAX
Feature	Shockproof, night vision LED light （Night vision distance can be customized）
	Default without ruler (analog signal can customize ruler) (AHD does not have ruler function).
	Default rear view mirror image （positive image can be customized）
Connectors	RCA、Avitation
